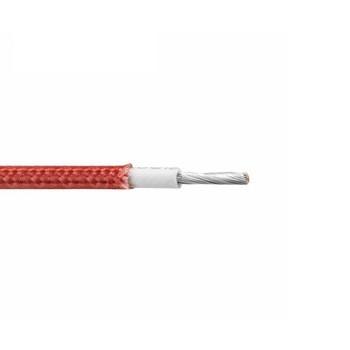

18AWG Fiberglass Braided Tinned Copper Wire UL 3071 FT2 Flame Test

  • 1
  • 2
  • 3

Brand Name : MYSUN

Model Number : UL3071

Certification : UL758

Place of Origin : China

MOQ : 1000meters

Price : USD 0.1-2/M

Payment Terms : T/T

Supply Ability : 1 million per day

Delivery Time : 5-10 working days

Packaging Details : 305M/roll,610M/roll

product name : silicone rubber wire

insulation : silicone rubber and fiber glass

conductor : tinned copper

rated voltage : 600V

rated temperature : 200C

certificates : UL certification

standard : UL758

size : 13-18AWG

color : black blue red white yellow green brown

MOQ : 1000meters

Contact Now

UL3071 silicone rubber wire

  • Flexibility: silicone rubber insulation with fiberglass braided sleeving
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 600 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 13AWG, 14AWG, 16AWG, and 18 AWG

Product demension:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
18 7/0.39 1.19 0.93 3.05 22.2 305/1000
16 7/0.49 1.49 3.35 14
14 41/0.254 1.87 3.73 8.78
13 50/0.254 2.07 3.93 6.97

18AWG Fiberglass Braided Tinned Copper Wire UL 3071 FT2 Flame Test
