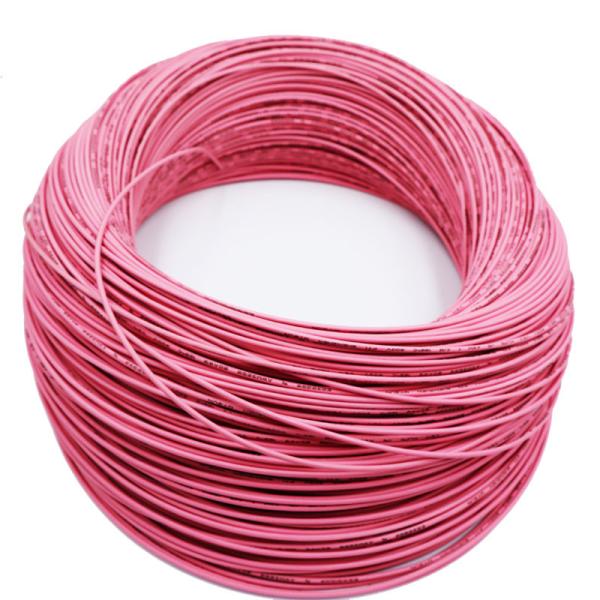

silicone rubber insulated wire UL3135 Flexible Silicone Wire For Tinned Copper Conductor
specifications
| Retad voltage | 600V |
| Retad temperature | 200°C |
| Insulation | silicone rubber |
| Conductor | tinned copper wire |
| Standards | UL 758 |
| Application | home appliances/ leds/industrial machine |
| Size | awg12,14,16,18,20,22,24,26 |
| M/FT | 305/1000 |
| Color | white,black,red,brown,yellow,blue,green,transparent etc. |
product dimensions
| Conductor | Insulation | Max.Cond Resistance | Unit length |
Size
(AWG) | Construction
(No./mm) | Diameter
(mm) | Nominal Thickness
(mm) | Diameter
(mm) | (Ω/KM) | (M)(Ft) |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.78 | 2.17 | 89.3 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.78 | 2.33 | 56.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.5 | 35.2 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.78 | 2.75 | 22.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.78 | 3.05 | 14 | 305/1000 |
| 24 | 11/0.16 | 0.61 | 0.78 | 2.17 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | 305/1000 |
| 20 | 26/0.16 | 0.94 | 0.78 | 2.5 | 35.2 | 305/1000 |
| 18 | 41/0.16 | 1.18 | 0.78 | 2.74 | 22.2 | 305/1000 |
| 16 | 26/0.254 | 1.49 | 0.78 | 3.05 | 14 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | 305/1000 |
| 12 | 19/0.47 | 2.63 | 0.78 | 3.92 | 5.53 | 305/1000 |
| 0.30mm² | 12/0.18 | 0.71 | 0.78 | 2.27 | 59.78 | 305/1000 |
| 0.50mm² | 20/0.18 | 0.92 | 0.78 | 2.48 | 40.1 | 305/1000 |
| 0.75mm² | 30/0.18 | 1.13 | 0.78 | 2.69 | 26.7 | 305/1000 |
| 1.00mm² | 40/0.18 | 1.31 | 0.78 | 2.87 | 20 | 305/1000 |
| 1.25mm² | 50/0.18 | 1.46 | 0.78 | 3.02 | 14.35 | 305/1000 |
| 2.00mm² | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | 305/1000 |
| 2.50mm² | 50/0.254 | 2.08 | 0.78 | 3.64 | 7.16 | 305/1000 |
Benefits of silicone rubber insulated wire
Silicone rubber insulated wire offers the following benefits, making it ideal for demanding industrial applications:
- Flexible Temperature Range: Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
- Flexible Stranding: Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
- Chemical and Oil Resistance: Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
- Enhanced Safety: The halogen free silicone rubber insulation does not release fumes or gases when ignited. This increases the safety of employees who work with electronic equipment.
Applications of Silicone Rubber Insulated Wires
This wire is specially recommended for various applications, including:
- Radiators
- Steel mills
- Electric motors
- Hot rolling mills
- Cooking surfaces
- Heating apparatus
- Industrial converters
- Ovens and ventilators
- Household appliances
- Metallurgical facilities
- Civil and industrial plants
- Lighting (halogen lamps, etc.)
- High voltage electrical cabins and circuits
If you require a perfect wire or cable for any of the above mentioned applications, silicone rubber insulated
wire is what you need. You can contact us to help you select the wire gauge and shielding that can meet
your needs. If required, We can also aid you with custom manufactured wires and cables.
