VDE approved silicone rubber insulated wire N2GFAF 0.1-6.0sqmm for options

Name: VDE approved silicone rubber insulated wire N2GFAF 0160sqmm for options
Brand: MYSUN
Price: 1 USD

Wholesale VDE approved silicone rubber insulated wire N2GFAF 0.1-6.0sqmm for options from china suppliers

Brand Name : MYSUN

Model Number : N2GFAF

Certification : VDE

Place of Origin : CHINA

MOQ : 5000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : one million meters each day

Delivery Time : 7-10 working days

Packaging Details : carton, pallet

Insulation : silicone rubber

Conductor : tinned copper

Size : 0.1-6.0sqmm

Color : black, red, white, yellow, blue, green, grey, yellow-green, pink

Rated voltage : 300V/300V

Working temp : 180C

Use in : home appliance, industry machines

SPQ : 610m/roll; 305m/roll

Package : reel, carton, pallet

Contact Now

VDE approved silicone rubber insulated wire N2GFAF 0.1-6.0sqmm for options

Specification:
Rated voltage: 300V/300V
Rated temperature: 180C
UL standard: VDE
Applications: this wire widely sued for home appliance, industrial machine and etc.

Cable dimensions:

Conductor			Insulation		Max.Cond Resistance	Unit length
Size (sqmm)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	(Ω/KM)	(M)(Ft)
0.1	7/0.14	0.44	0.6	1.64	188	610/2000
0.25	14/0.15	0.65	0.6	1.85	80.29	610/2000
0.35	20/0.15	0.75	0.6	1.95	55	610/2000
0.5	20/0.18	0.95	0.6	2.15	40.1	305/1000
0.75	30/0.18	1.13	0.6	2.33	26.7
1	32/0.2	1.31	0.6	2.51	20
1.5	30/0.254	1.6	0.7	3	13.7
2.5	50/0.254	2.08	0.8	3.68	7.16
4	56/0.305	2.65	0.8	4.25	4.7
6	84/0.305	3.24	0.8	4.84	4.7

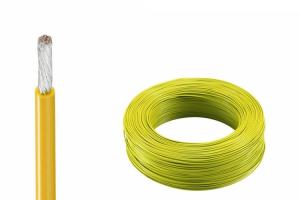

Cable details:
VDE approved silicone rubber insulated wire N2GFAF 0.1-6.0sqmm for options

VDE approved silicone rubber insulated wire N2GFAF 0.1-6.0sqmm for options

Price term:
EXW, FOB, CIF

Payment terms:
LC, TT, Western Union and PayPal

Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

Product Tags:

silicone rubber insulated cable

high temperature heater wire
